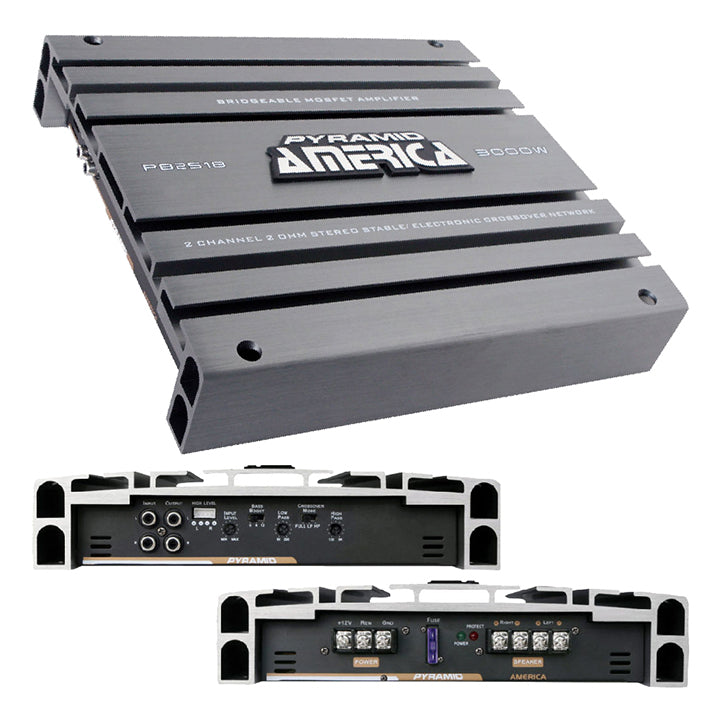

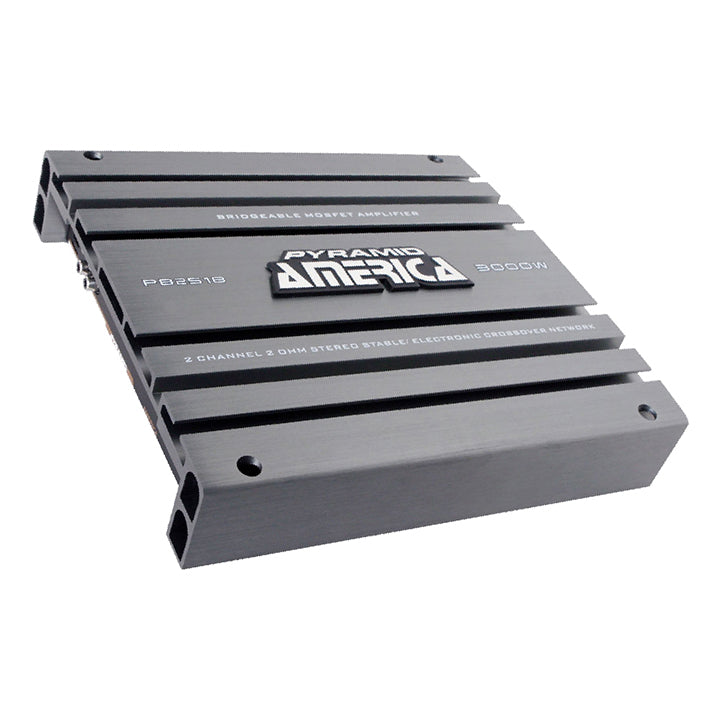

Pyramid America Series Class A/B 2 Channel Amplifier, 300W RMS/3000W MAX
300 Watts RMS/3000 Watts MAX
150 x 2 RMS @ 2 Ohms
75 x 2 RMS @ 4 Ohms
DIM (WXHXL) 10.25" x 2.25" x 11"
1 X 35 AMP FUSE
2 Ohm Stable
Mosfet PWM Power Supplies
Fully Adjustable Electronic Crossovers
Variable Bass Boost (0-12DB@50Hz)
Soft Turn On/Off Circuit
Remote Turn On
Heavy Duty Aluminum Alloy Heat-sink

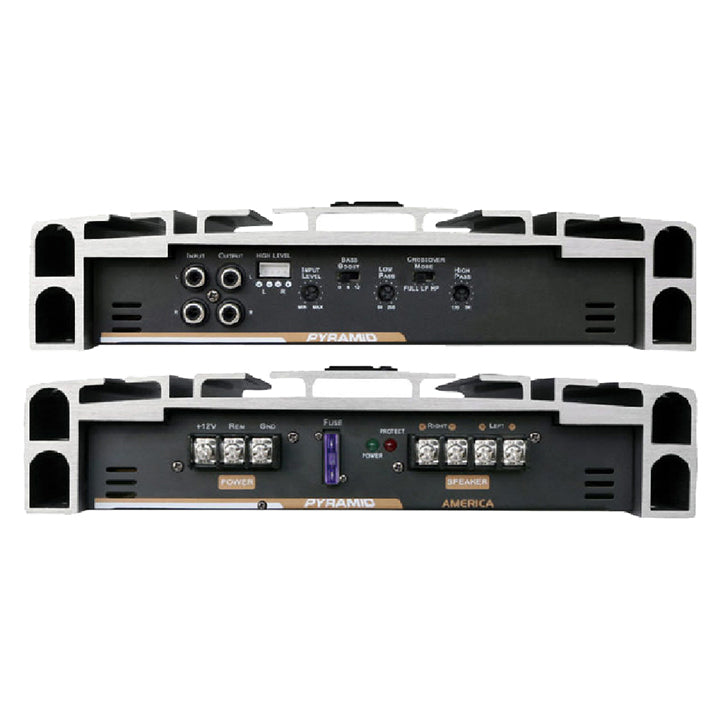

Hi/Low Level Inputs
High Impedance Input
High Level Molex Input
Power and Protection LED's
S/N Ratio: > 95DB
Frequency Response: 15Hz-30KHz
THD< 0.04%
Fully Protected Circuitry
Variable Gain Control
