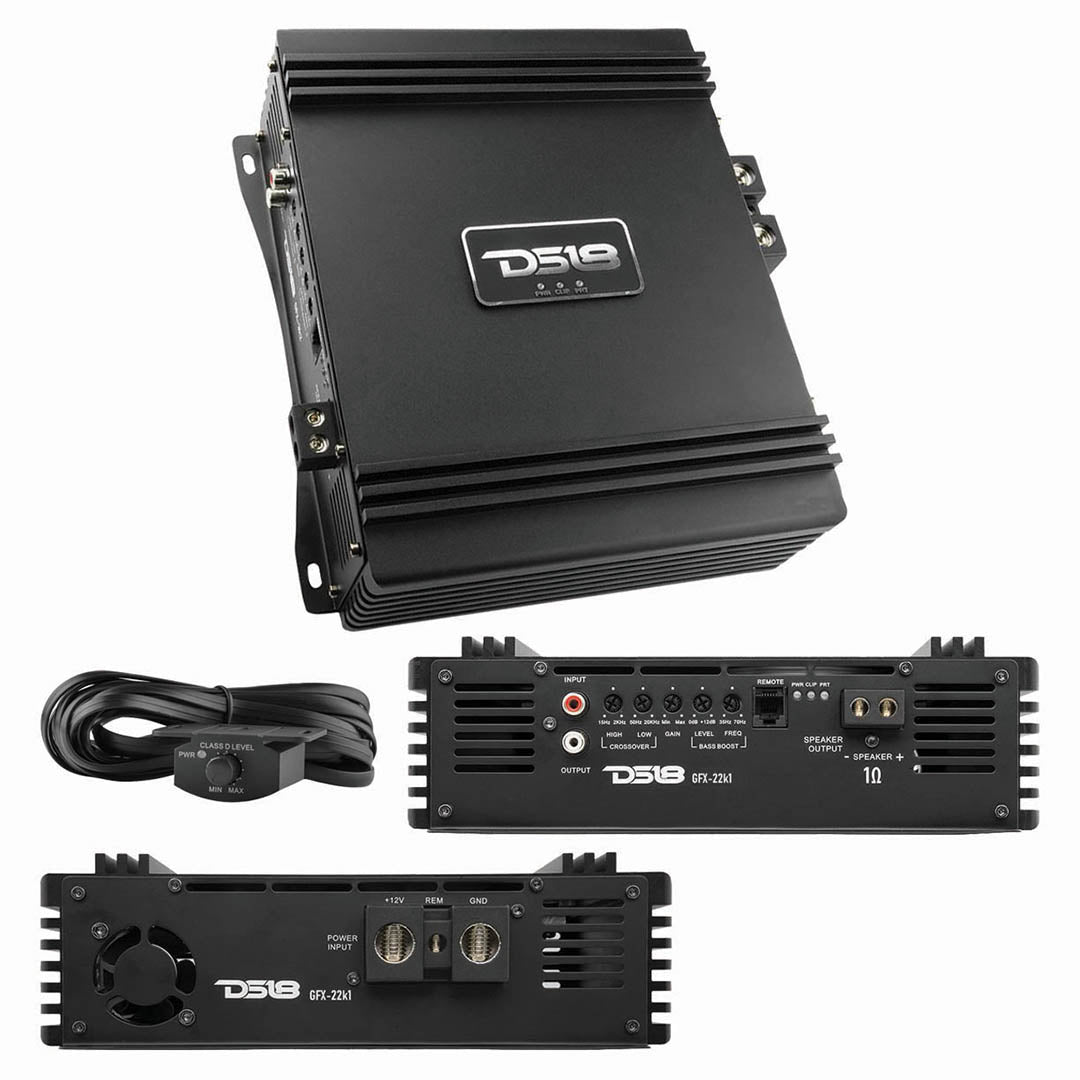

DS18 Pro Full Range Class D Mono Amplifier 1 Ohm 2200 Watts RMS
2200 Watts RMS
2200 X 1 @ 1 Ohm (14.4V)
1500 x 1 @ 2 Ohms (14.4V)
Dim (W X H X L) 9.29" x 2.83" x 7.7"
Recommended Fuse: 220A (Not Included)
Full Range Class - D Amplifier
1 Ohm Stable
Hi Pass Crossover: 15 Hz - 2 KHZ (12dB/Oct)
Lo Pass Crossover: 50 Hz - 20 KHZ (12dB/Oct)
Frequency Response: 15 Hz - 20 KHZ
Bass Boost: 0-12dB
Bass Frequency: 35 Hz - 70 Hz

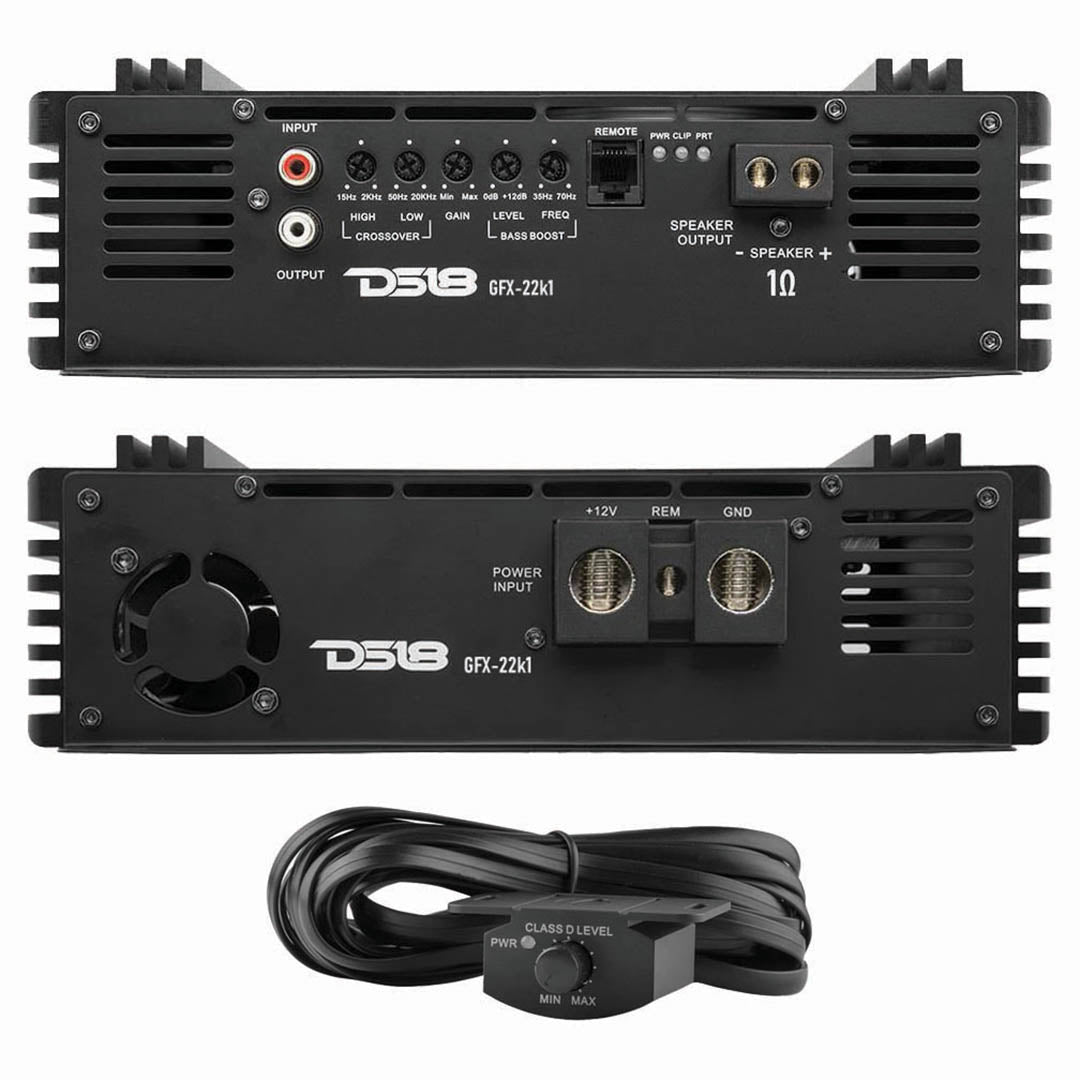

Preamp In/Outputs
Remote Bass Control
Compact Size and wide Band Crossover for more applications
Surface Mount Component
Audio Precision Quality Control Verification
Stable & Reliable Four Layers PCB Trace Layout
Heavy Duty Heat-sink Chassis
