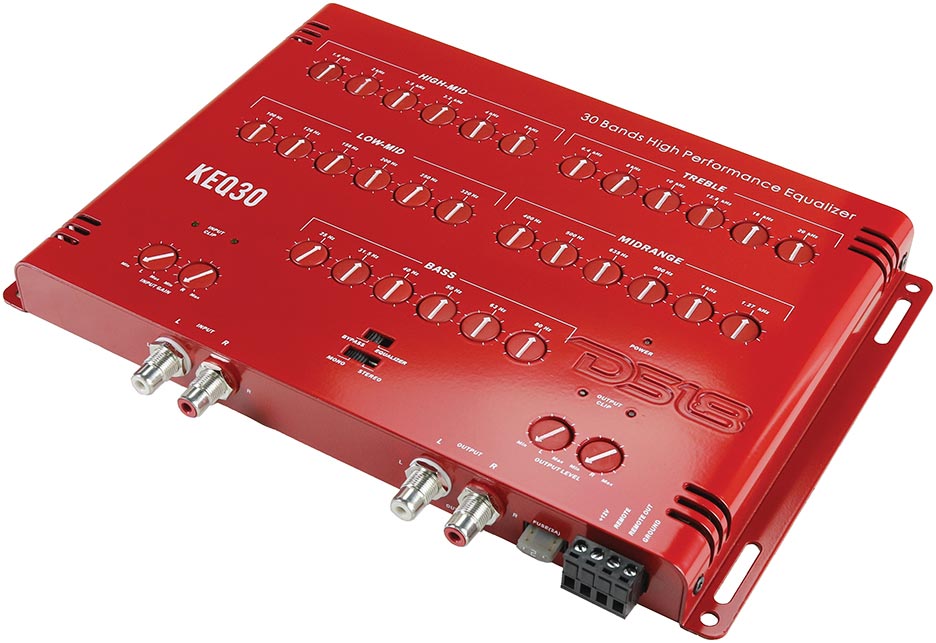

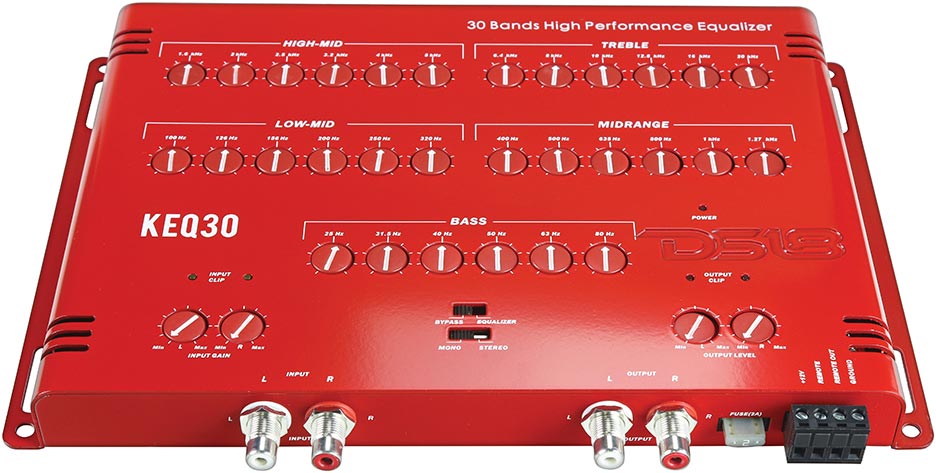

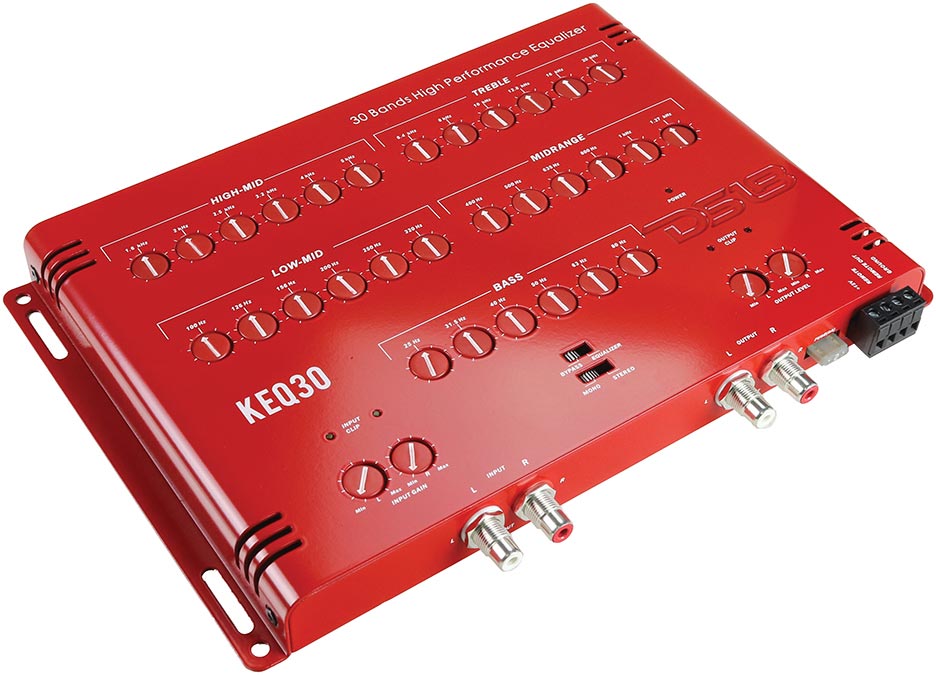

30 Bands at 1/3 Octave Spacing Allows Precise adjustment at each 1/3 octave
12 dB Boost or Cut Available at each of the 30 bands
High Voltage Preamp Accepts 500 mV to 9 Volts
9 Volts Output
Left and Right Input/Output Controls
Left and Right Input/Output Clipping LEDs - Aid in Setting Input Gain Controls
Mono / Stereo Selector
EQ / Bypass Switch
Tiffany RCA Jacks
Remote Out
Equalization: 30 bands 1/3 octave centering +/- 12 dB per band
Bass: 25, 31.5, 40, 50, 63, 80 (Hz)
Low-Mid: 100, 126, 156, 200, 250, 320 (Hz)
Midrange: 400, 500, 635, 800, 1K, 1.27K (Hz)
High-Mid: 1.6K, 2K, 2.5K, 3.2K, 4K, 5K (Hz)
Treble: 6.4K, 8K, 10K, 12.8K, 16K, 20K (Hz)
