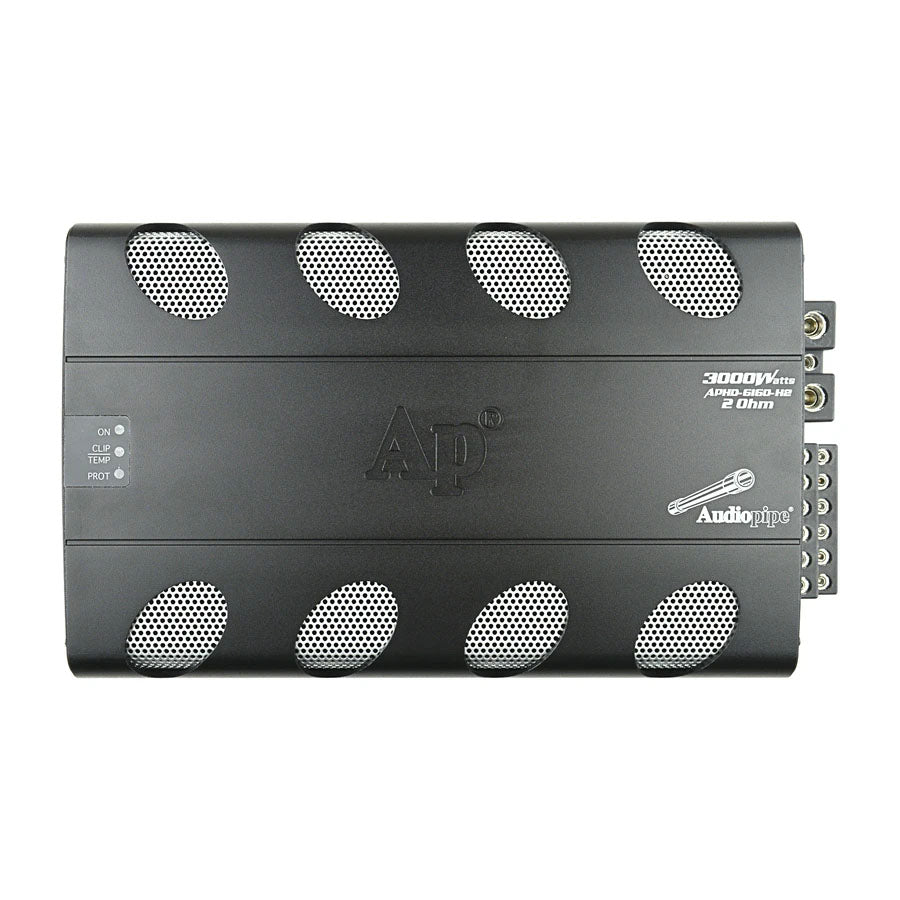

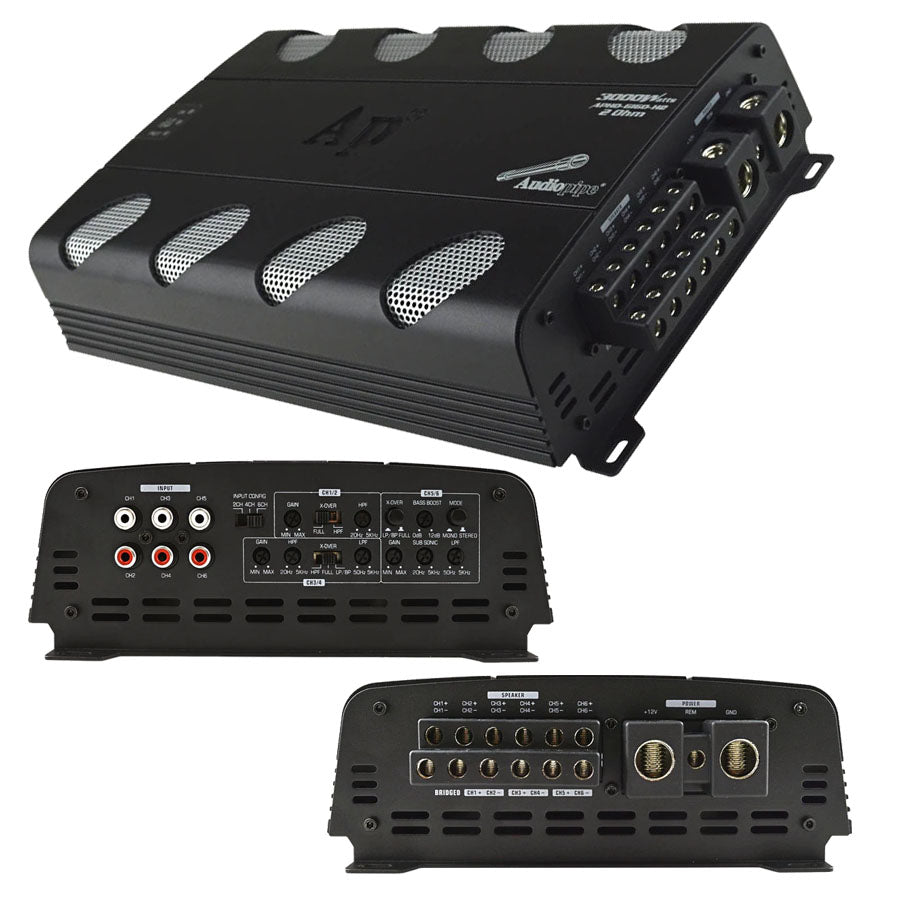

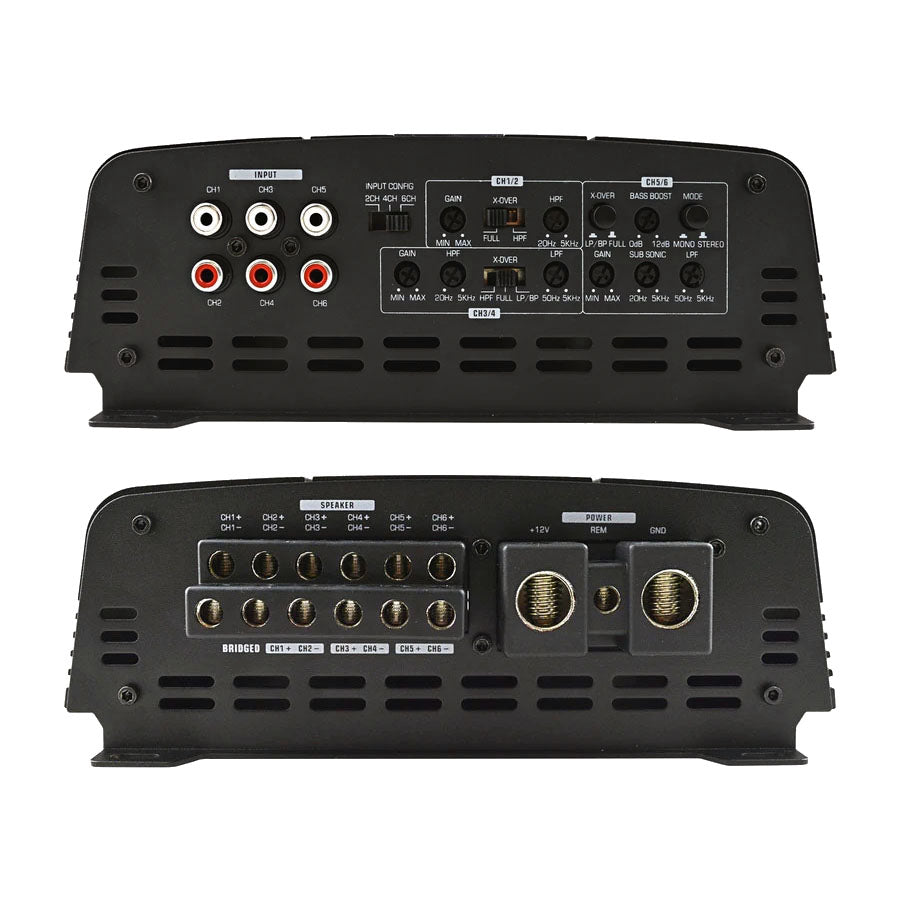

Audiopipe 6 Channel Class D High Power Amplifier, 3000 Watts
Output Power (RMS) @1% 1Khz 14.V
6 x 270 Watts RMS @ 2 Ohms
6 x 160 Watts RMS @ 4 Ohms
3 x 550 Watts RMS @ 4 Ohms (Bridged)
Dimensions (L x W x H): 11.8" x 8.2" x 2.6"
Includes fuse block & 100A ANL Fuse
Full Range Class D Amplifier
Frequency Response (-1dB): 10Hz~25KHz
High Pass Crossover: 20Hz~5KHz @12dB/OCT
Low Pass Crossover: 50Hz~5KHz @12dB/OCT
S/N Ratio: > 90dB
Input Sensitivity: 0.2~6V
Working Voltage: 9~16V

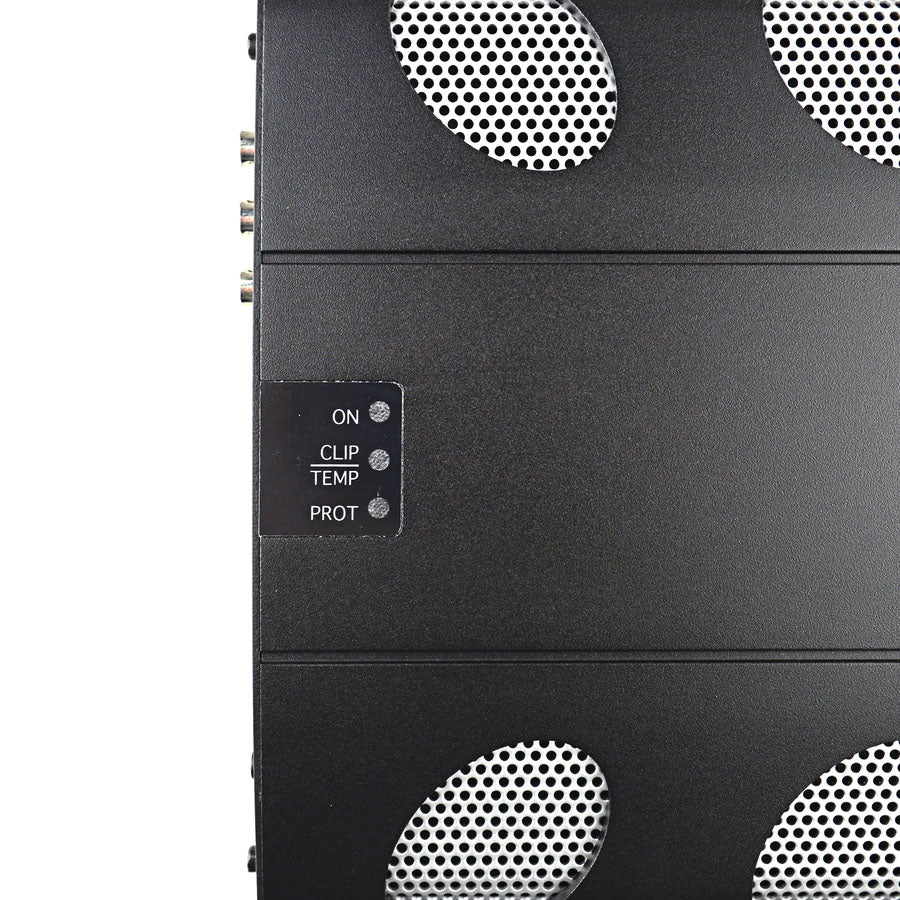

Built-in visual LED status monitor
Protection System: Short into Output / high & low Supply Voltage / Thermal Protection
