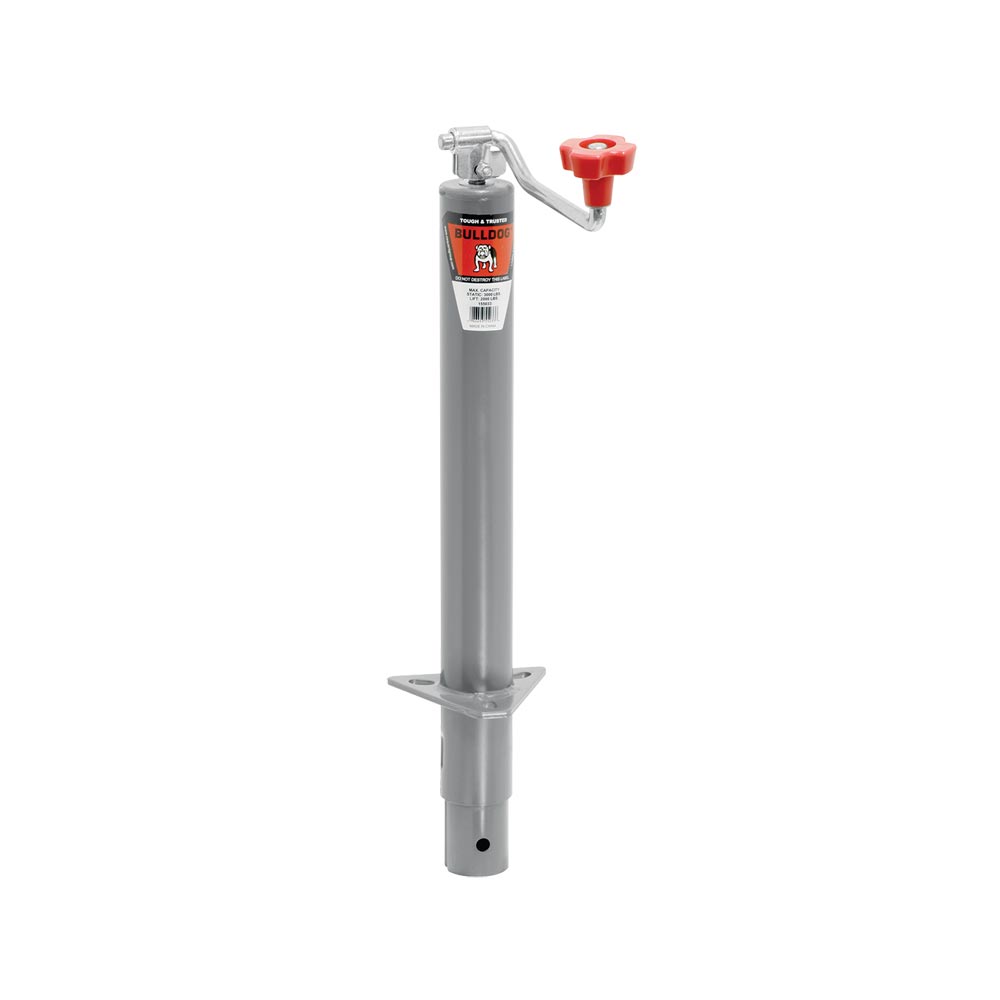

Round, A-Frame Jack - Topwind - 15" Lift - 2,000 lbs
Dependable jack is recognized as industry standard for agricultural and commercial applications
ASABE compliant
Precision-fitted parts provide exceptional stability and reliability
Weld-on/bolt-on bracket mounts to any standard A-frame coupler
Topwind handle has smooth, ergonomic design for easy cranking
Outer and inner tubes are gray-paint finished
Footplate or caster assembly sold separately
Specs:
Bracket height:
5-3/8" Retracted
20-3/8" Extended
Lift: 15"
Clearance: 16" from mounting bracket to top of jack
Inner tubing diameter: 2"
Outer tubing diameter: 2-1/4"
Handle radius: 6-5/8"
Lift capacity: 2,000 lbs
