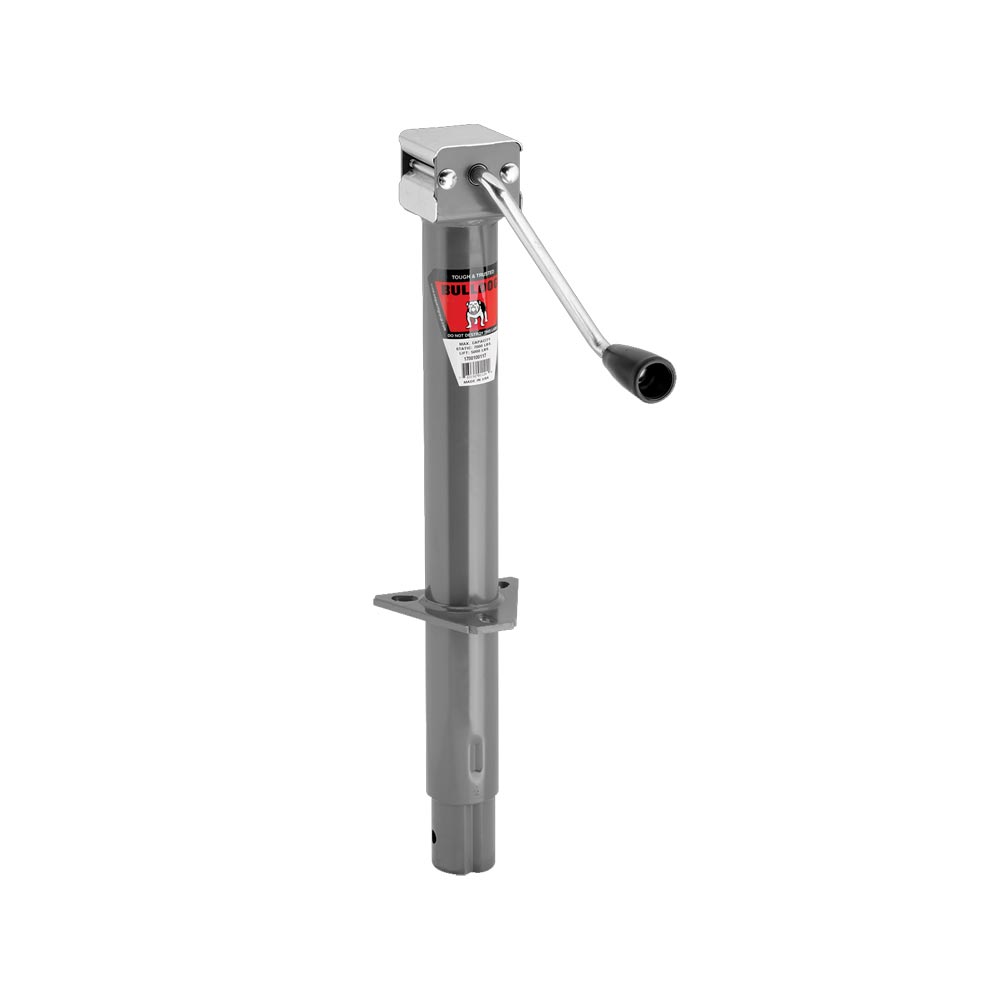

Round, A-Frame Jack - Sidewind - 15" Lift - 5,000 lbs
Dependable jack is recognized as industry standard for agricultural and commercial applications
ASABE compliant
Precision-fitted parts provide exceptional stability and reliability
Weld-on/bolt-on bracket mounts to any standard A-frame coupler
Sidewind handle has smooth, ergonomic design for easy cranking
Outer and inner tubes are gray-paint finished
Footplate or caster assembly sold separately
Specs:
Bracket height:
8-5/8" Retracted
23-5/8" Extended
Lift: 15"
Clearance: 14-3/4" from mounting bracket to top of jack
Inner tube inside diameter: 1-3/4"
Inner tube outside diameter: 2"
Outer tube diameter: 2-1/4"
Handle radius: 6-11/16"
Slotted bolt holes on mounting flange: 7/16" wide x 7/8" long
Lift capacity: 5,000 lbs
