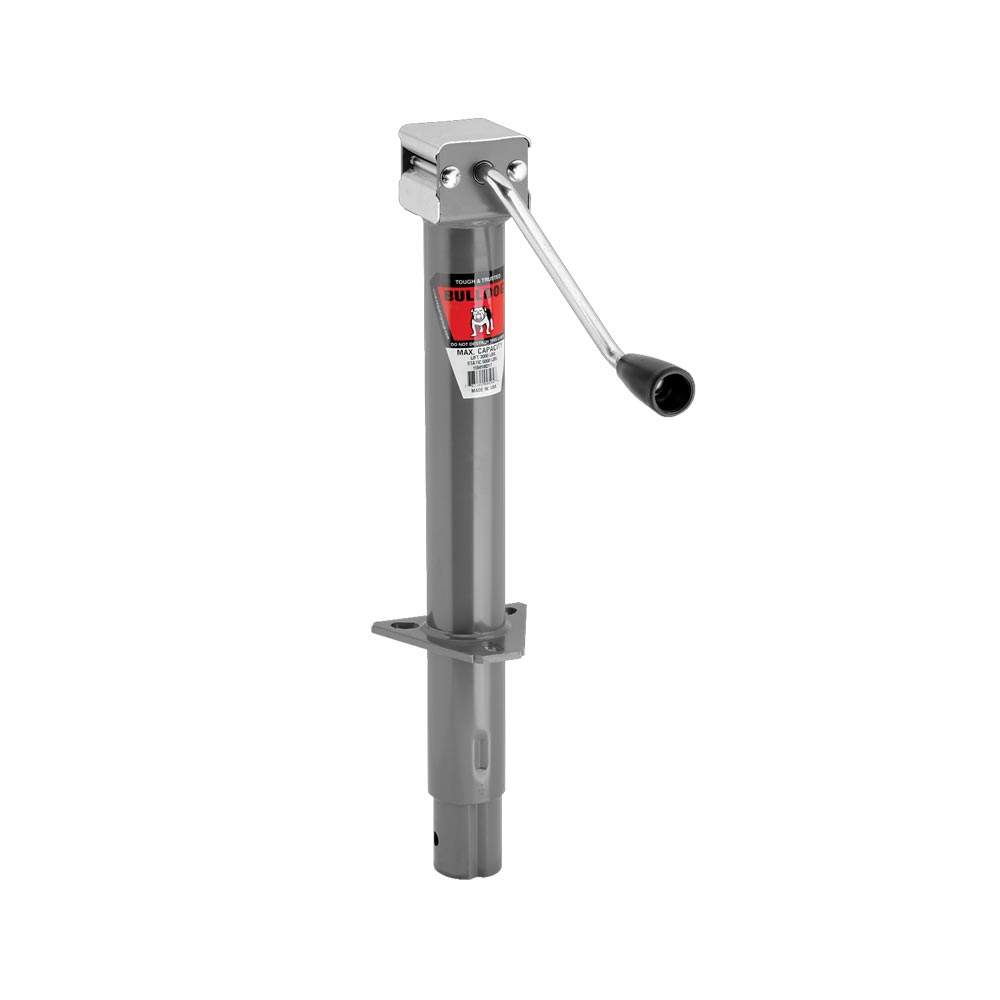

Round, A-Frame Jack - Sidewind - 13" Lift - 3,000 lbs
Dependable jack is recognized as industry standard for agricultural and commercial applications
ASABE compliant
Precision-fitted parts provide exceptional stability and reliability
Weld-on/bolt-on bracket mounts to any standard A-frame coupler
Sidewind handle has smooth, ergonomic design for easy cranking
Outer and inner tubes are gray-paint finished
Footplate or caster assembly sold separately
Specs:
Bracket height:
7" Retracted
20" Extended
Lift: 13"
Clearance: 14-1/2" from mounting bracket to top of jack
Inner tubing diameter: 2"
Outer tubing diameter: 2-1/4"
Handle radius: 5-13/16"
Lift capacity: 3,000 lbs
